In short ⚡
Flexible-Path Equipment refers to material handling systems capable of adapting their routing and movement patterns dynamically to accommodate varying product flows, layouts, or operational demands. Unlike fixed-path conveyors, these systems enable multi-directional transport, reconfigurable pathways, and responsive logistics operations essential for modern warehousing and distribution centers.Introduction
Many logistics operations struggle with rigid conveyor systems that cannot adapt when product mixes change, seasonal peaks occur, or facility layouts evolve. Traditional fixed-path equipment creates bottlenecks, limits scalability, and increases downtime during reconfiguration.
Flexible-path equipment addresses these challenges by enabling dynamic routing decisions. This technology has become critical for e-commerce fulfillment, cross-docking operations, and automated warehouses requiring rapid response to fluctuating demand patterns.

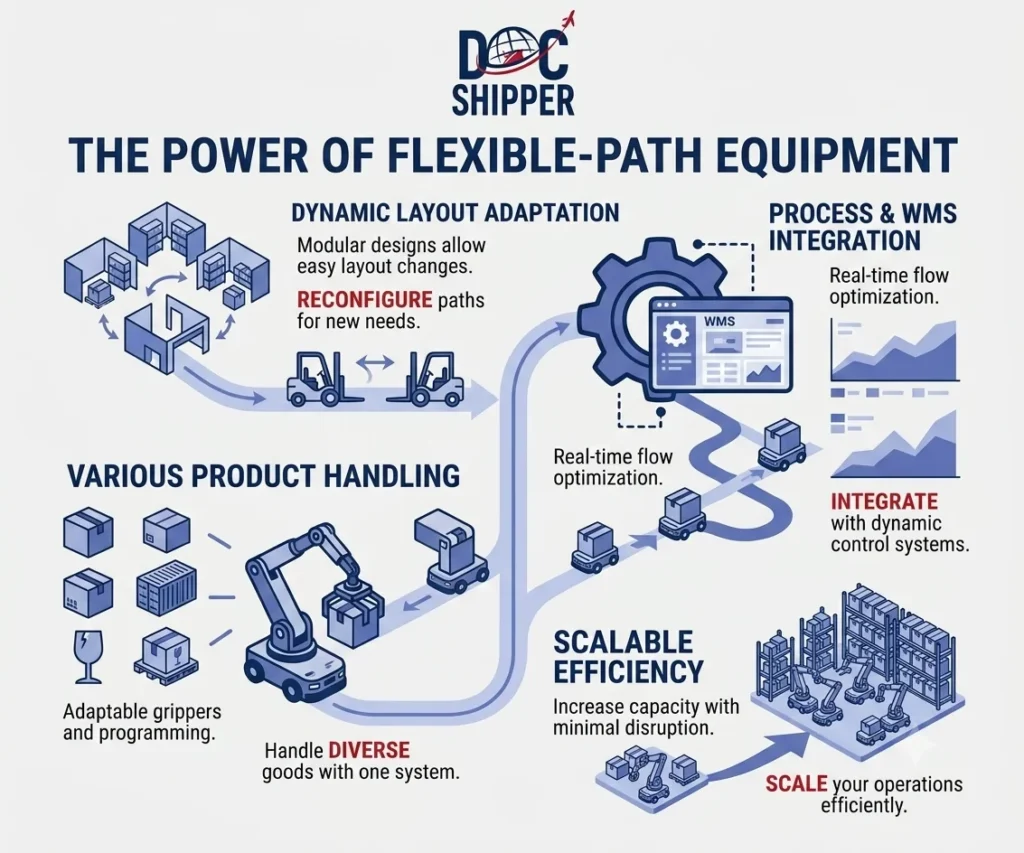

Key characteristics of flexible-path systems include:
- Multi-directional movement – goods can be routed along multiple paths without manual intervention
- Reconfigurable layouts – pathways adapt to operational changes without major infrastructure modifications
- Automated decision-making – integrated software determines optimal routing based on real-time conditions
- Scalable deployment – systems expand incrementally as volume requirements increase
- Integration capability – seamless connection with WMS, ERP, and robotic systems
Technical Mechanisms & Operational Expertise
Flexible-path equipment encompasses several technological approaches. Autonomous Mobile Robots (AMRs) represent the most adaptive solution, using onboard sensors and AI-driven navigation to determine routes independently. These units adjust paths in real-time based on obstacles, priority assignments, or changing destination requirements.
Modular conveyor systems provide another approach, utilizing interchangeable belt segments, pop-up transfers, and diverter mechanisms. These configurations allow operators to redirect product flows by activating specific modules without stopping the entire line. The European Materials Handling Federation published technical standards for modular conveyor interoperability in their FEM 9.511 guidelines, establishing compatibility benchmarks across manufacturers.
Automated Guided Vehicles (AGVs) with flexible routing software bridge the gap between fixed and fully autonomous systems. Modern AGVs no longer require physical guidance tracks, instead following virtual paths programmed into fleet management software. Route modifications occur through software updates rather than infrastructure changes.
The operational advantage lies in zone-based control logic. Rather than predetermining every movement, the system divides facilities into operational zones. Equipment receives destination instructions and autonomously selects optimal paths within defined boundaries. This approach reduces programming complexity while maintaining operational control.
Sortation accuracy improves dramatically with flexible-path systems. Traditional fixed sorters achieve 99.5% accuracy under stable conditions, but performance degrades when handling mixed SKU profiles. Flexible systems maintain accuracy levels by dynamically adjusting sort logic based on package characteristics detected in real-time.
At DocShipper, we evaluate flexible-path equipment during warehouse design consultations, ensuring material handling solutions align with client volume projections and product diversity. Our logistics engineers assess integration requirements between flexible equipment and existing infrastructure to prevent compatibility issues during implementation.
Concrete Applications & Comparative Data
Operational performance varies significantly across flexible-path technologies. The following comparison illustrates capabilities relevant to import/export distribution environments:
| Equipment Type | Path Flexibility | Throughput Capacity | Reconfiguration Time | Typical Application |
|---|---|---|---|---|
| Fixed Conveyor | None | 8,000 units/hour | 2-5 days | High-volume single-flow |
| Modular Conveyor | Moderate (5-8 paths) | 6,500 units/hour | 4-8 hours | Multi-SKU distribution |
| AGV Fleet | High (software-defined) | 4,200 units/hour | 15-30 minutes | Variable routing needs |
| AMR System | Maximum (autonomous) | 3,800 units/hour | Real-time | Dynamic fulfillment |
Use Case: E-commerce Fulfillment Center
A European fashion retailer processing 42,000 orders daily implemented AMR-based flexible-path equipment to handle seasonal volume fluctuations. During non-peak periods (January-March), the system operates with 18 active robots across standard pathways. When Black Friday demand surges to 96,000 orders daily, the fleet expands to 34 units without layout modifications.
The financial impact proved significant. Traditional conveyor expansion would have required €480,000 capital investment plus 6 weeks downtime. The AMR approach cost €310,000 with zero operational interruption. Annual maintenance expenses decreased by 23% due to modular component replacement versus full-system servicing.
Cross-Docking Operations benefit particularly from flexible-path capabilities. A logistics provider handling pharmaceutical imports implemented modular conveyor zones enabling direct product transfer from inbound containers to outbound regional trucks. Path reconfiguration occurs between shifts based on the next day’s delivery schedules, reducing staging area requirements by 38% and cutting average dwell time from 14 hours to 6 hours.
Key operational advantages observed across implementations:
- Labor flexibility – workers reassign between zones without retraining on different equipment
- Peak absorption – systems handle 40-60% volume increases without infrastructure changes
- Error recovery – automated rerouting when paths encounter blockages or malfunctions
- SKU adaptability – handling profiles adjust for products ranging from envelopes to pallets
- Future-proofing – incremental technology upgrades without complete system replacement
Conclusion
Flexible-path equipment represents essential infrastructure for logistics operations facing variable demand, diverse product portfolios, or evolving facility requirements. The technology transforms material handling from static constraint into dynamic competitive advantage.
Need assistance evaluating flexible-path solutions for your distribution network? Contact DocShipper for expert consultation on material handling system design and implementation.
📚 Quiz
Test Your Knowledge: Flexible-Path Equipment
FAQ | Flexible-Path Equipment: Definition, Applications & Operational Examples
Traditional conveyors move products along predetermined fixed routes requiring physical infrastructure changes for path modifications. Flexible-path equipment uses modular components, autonomous vehicles, or software-controlled routing to adapt movement patterns dynamically without structural alterations. This enables operational adjustments within hours rather than days or weeks.
